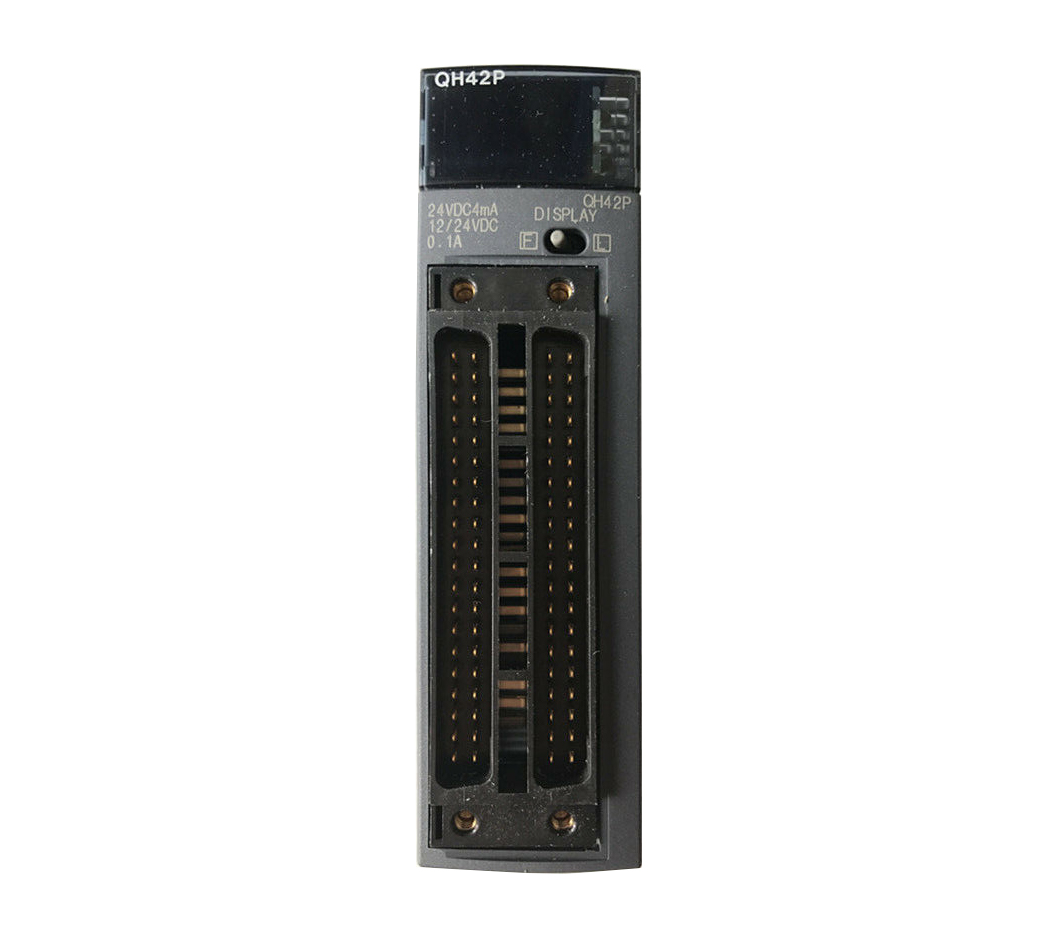

MITSUBISHI QH42P Product information and technical parameters:
Name: DC input / transistor output module
Model: QH42P
Input points: 32 points.
Input voltage and current: 4mA DC24V.
Response time: 1/5/10/20/70ms.
Common anode.
Output points: 32 points.
Output voltage and current: 0.1A/ DC12~24V point; 2A/ common.
OFF leakage current: 0.1mA; response time: 1ms.
Leaky type.
40 pin connector.
With heat protection.
With short circuit protection.
With the surge absorber.
With the help of sample tracking function, the starting time is shortened
By using the sampling and tracking function, it is convenient to analyze the data when the fault occurs,
Testing procedures for the time, etc., can shorten the time of failure analysis and start-up time.

Weight 150 g
Dimensions 10 × 8 × 9 cm
