Product Description

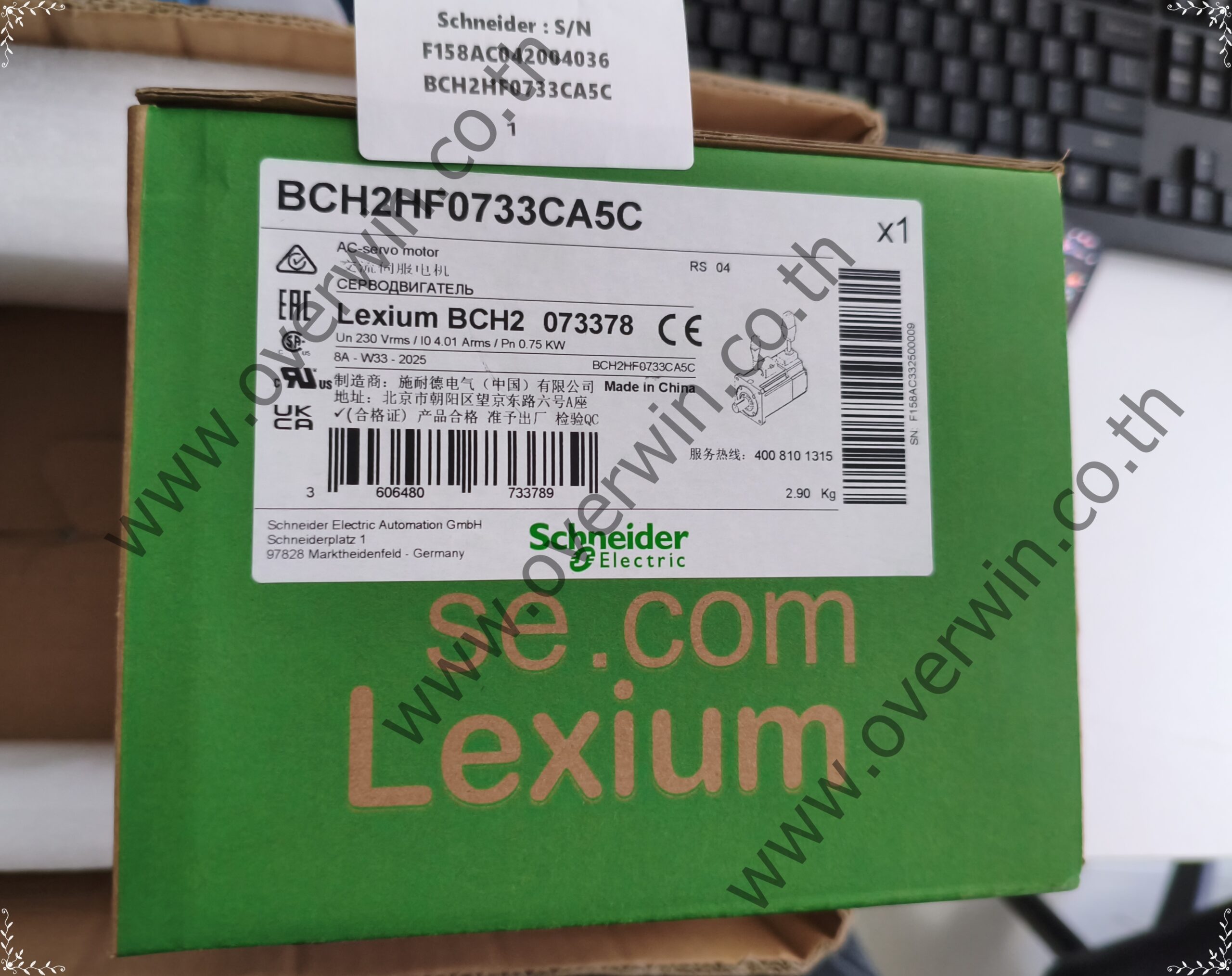

The Schneider Electric BCH2HF0733CA5C is a premium brushless AC servo motor from the Lexium 28 series, specifically engineered for precision, power, and adaptability. With a nominal output of 750 W, this 80 mm flange motor offers exceptional performance for industrial and automation applications.Schneider ElectricOctopart

Key Features:

• Power & Performance: 750 W continuous output, capable of achieving stall torque up to 7.16 Nm and continuous stall torque of 2.39 Nm

• Speed & Precision: High max speed of 5000 RPM, equipped with a 20-bit single-turn absolute encoder for ultra-precise motion control.

• Construction & Reliability: Features an IP65-rated body (with oil seal and keyed shaft), rugged powder coating, and natural convection cooling—ideal for harsh environments.

• Dimensions & Mechanics: Square 80 mm x 80 mm flange, mounting length 138 mm, rotor inertia of approximately 1.54 kg·cm².

• Voltage & Input: Rated for 220 VAC (also compatible with 110 V in some models), supports both single- and three-phase configurations.

• Integration: Seamlessly pairs with Lexium 28 and Lexium 26D servo drives.
