Delta THB1748BG 48VDC Axial Cooling Fan PWM Control

🌀 Product Overview

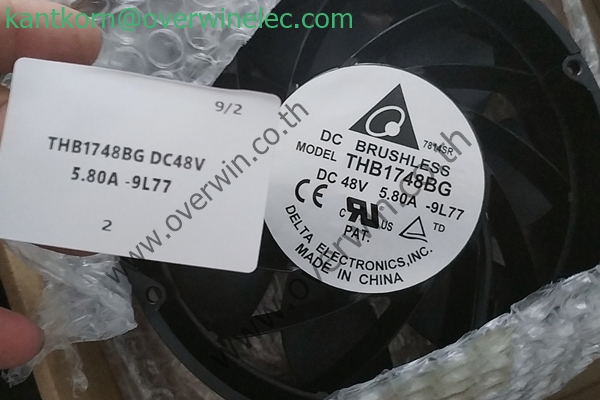

Product Name: Delta Electronics THB1748BG Axial Cooling Fan
Brand: Delta Electronics
Model: THB1748BG
Category: Industrial Cooling Fans
Product Type: DC Brushless Axial Fan
Origin: Taiwan
Size: 172 x 172 x 50.8 mm
Rated Voltage: 48 VDC
Power Consumption: 168 W
Current: 3.5 A
Frequency: 50/60 Hz

🔧 Key Features

• High Airflow Capacity: Delivers up to 607.07 CFM (17.17 m³/min), ensuring efficient cooling for various applications.

• Compact Design: Standard 172 x 172 mm square frame with a 50.8 mm depth, compatible with most equipment requiring ventilation.

• Durable Bearings: Equipped with ball bearings for extended operational life and reduced maintenance.

• Low Noise Operation: Operates at 75 dBA, suitable for environments where noise levels are a concern.

• Wide Operating Temperature Range: Functional between -10°C and +70°C, accommodating diverse environmental conditions.

• Energy Efficient: Consumes approximately 168 W of power, balancing performance and energy use.

• Quality Construction: Features a die-cast aluminum frame for durability and resistance to environmental factors.

• Advanced Control Features: Supports Pulse Width Modulation (PWM) speed control and provides tachometer output for speed monitoring.
