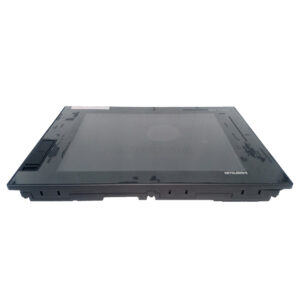

Mitsubishi GT1675M-STBA Graphical Touch Terminal GOT 1000 GT1675MSTBA

  • Extended Product Type: HMI
  • Product ID: GT1675M-STBA
  • Mitsubishi Type Designation: HMI
  • Classification : Large size: 8 to 15 type
  • Product model name: GT 1675 M-STBA
  • Model name: GT16
  • Number of display characters : 16 dot Standard font: 50 characters x 37 lines (full-width) 12 dots In standard font: 66 characters x 50 lines (full-width)
  • Delivery date : ? (Baked product)
  • Conforming standard : UL / cUL, CE (EMC), CE (LVD), CE (RoHS), KC, ABS, BV, DNV GL, LR, NK, RINA
  • Display unit type : TFT color liquid crystal (high brightness, wide viewing angle)
  • Screen size : 10.4 type
  • resolution : SVGA: 800 X 600 [dot]
  • Display size : 211 (W) x 158 (H) [mm]

Specifications of Mitsubishi GT1675M-STBA Graphical Touch Terminal

  • Type : TOUCH PANEL
  • Power Supply (V) : 100-240
  • Current Type : AC
  • Display : TFT
  • Resolution (Pixels) : 800X600
  • Dimension(W x H x D in mm) : 303 x 214 x 56
  • Weight (kg) : 2,1
Weight 1500 g
Dimensions 20 × 20 × 20 cm
