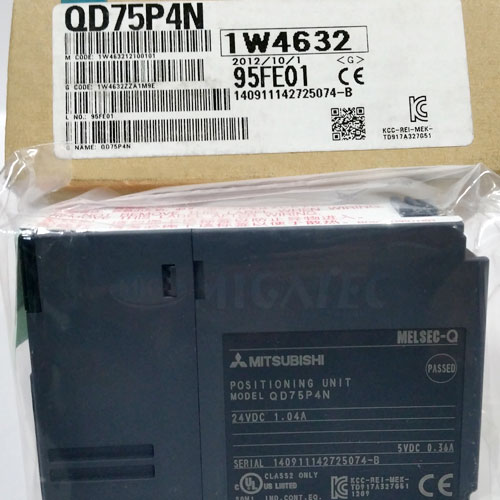

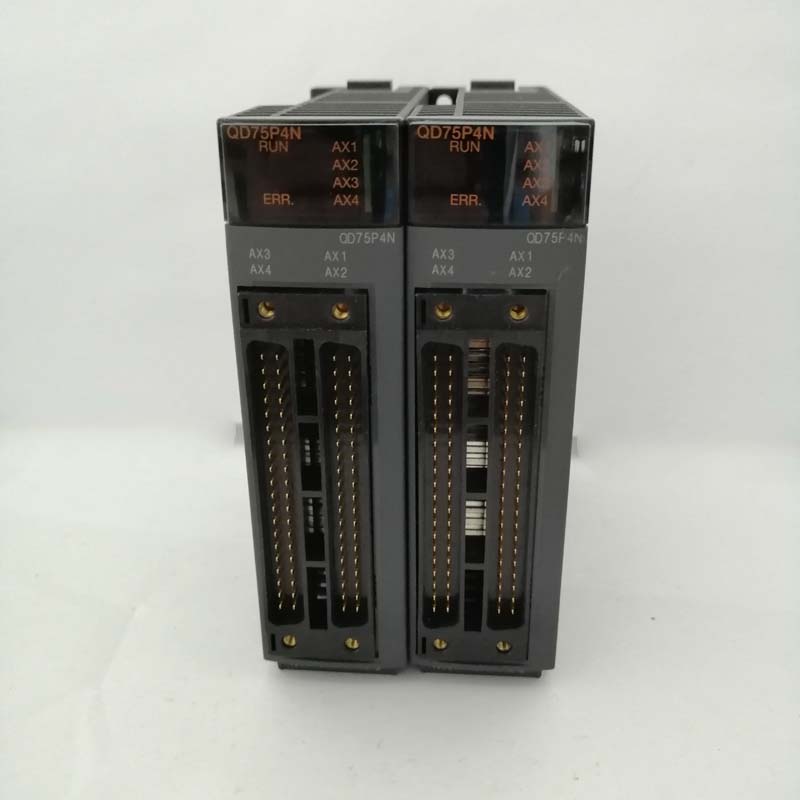

MITSUBISHI QD75P4N Product information and technical parameters:
Brand: MITSUBISHI
Name: Open collector output (upgraded version)
Model: QD75P4N
4 axes, open collector output type.
2 axis /4 axis /3 axis linear interpolation.
2 axis interpolation.
Control unit: mm, inch, degree, pulse.
Location data: 600 data / axis.
Maximum pulse output: 200Kpps.
40 pin connector.
Positioning module.
Open collector output.
Differential driver output.
Based on the use of open collector outputs and differential drive output type 2 types.
Differential driver output type positioning module can transmit high-speed instruction pulse (up to 4Mpps) to the servo amplifier reliably,

Weight 200 g
Dimensions 10 × 8 × 5 cm
