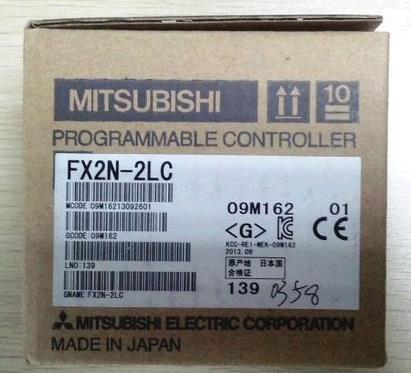

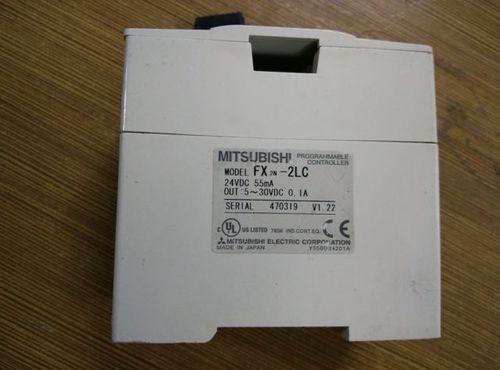

MITSUBISHI FX2N-2LC Product information and technical parameters:
Name: Temperature control module
Model: FX2N-2LC
Control mode: 2 position control, PID control (with self-tuning), PI control.
Control operation period: 500ms.
Applicable PLC: FX1N, FX2N, FX3U, FX2NC (to FX2NC-CNV-IF).
Applicable PLC: FX3UC (to FX2NC-CNV-IF or FX3UC-1PS-5V).
2 pass temperature input and 2 channel transistor output,
1 module can be 2 systems for temperature regulation.
Single module to support PID (with self-tuning), 2 position control, PI control.
Can be detected by the current detector (CT) is out of line.

Input points: 16 points.
Input specifications: drain / source.
Output points: 16 points.
Output form: transistor output (source).
Power consumption: 8W.
Weight: 0.2KG.
Outline dimension: 34x90x87mm.

Weight 200 g
Dimensions 3 × 9 × 8 cm
