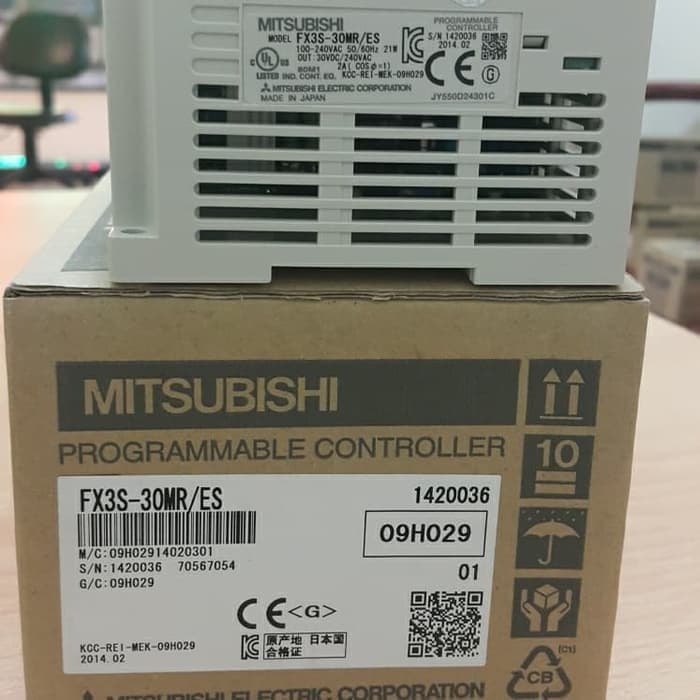

The Mitsubishi FX series 3rd generation basic, compact and compatible programmable logic controller (PLC) has 16 digital inputs (type 24VDC sink/source) and 14 relay outputs. It has RS-232C/RS-422/USB programming communication and also Ethernet and Modbus networking. It provides a fit and forgets PLC solution for space and cost-conscious applications requiring up to 30 I/O. This minimum expandability and the battery-less maintenance-free controller is perfect for handling straightforward processes and it can be hidden in locations without regular maintenance activities.

Features and Benefits

High performance with minimal size
Voltage rating ranges between 100VAC and 240VAC
Maintenance-free EEPROM memory
RS232, RS485, and Ethernet communication expansion possible
Ample memory capacity (4000 steps) and device ranges
Built-in USB port for the programming communication function to enable high-speed communication at 12Mbps
Built-in positioning control
Integrated real-time clock
Increased functionality using expansion boards and special adapters
Programming with GX Works2 or GX Works2 FX
Operation temperature ranges between 0°C and 55°C

Weight 400 g
Dimensions 23 × 5 × 8 cm
