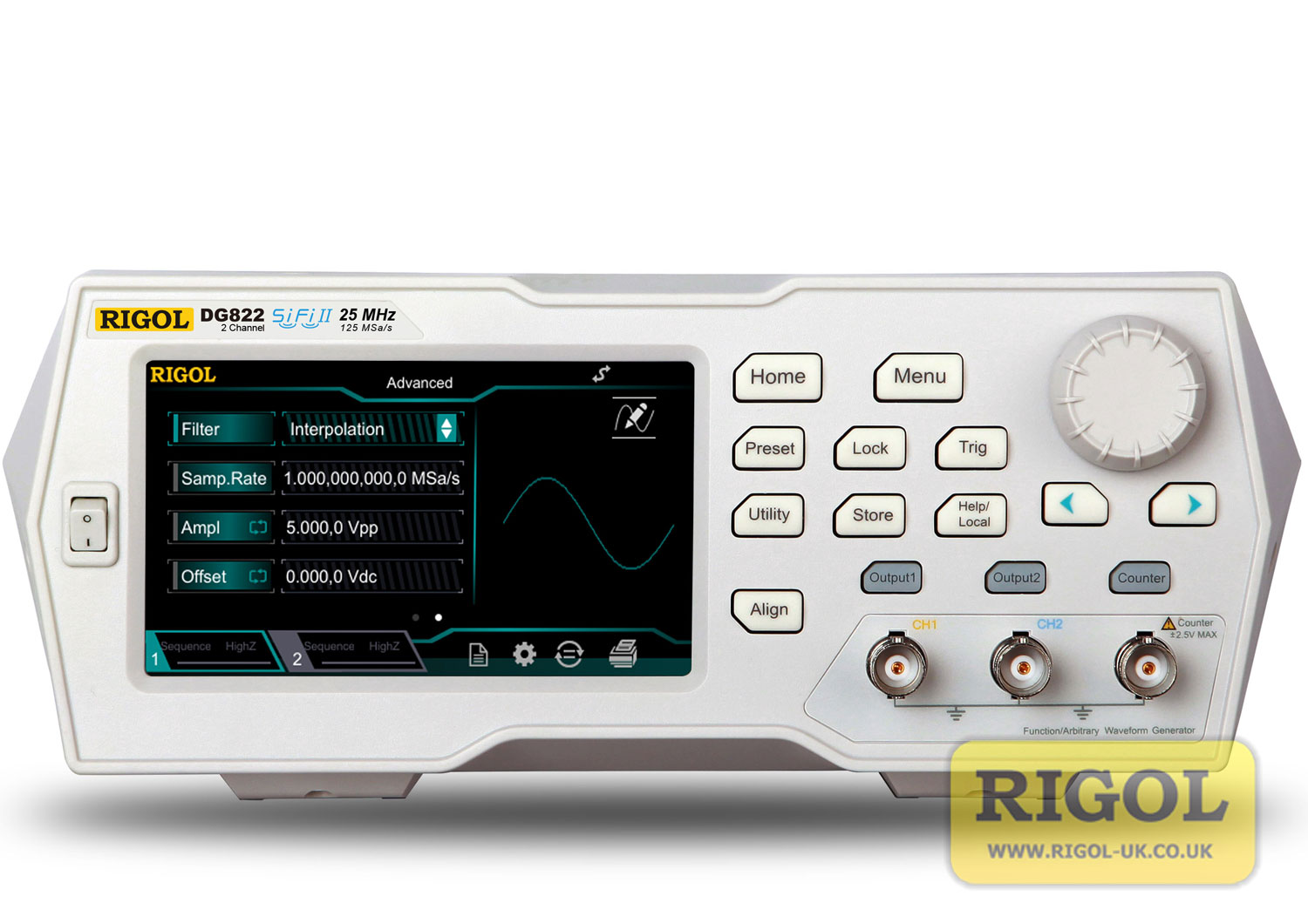

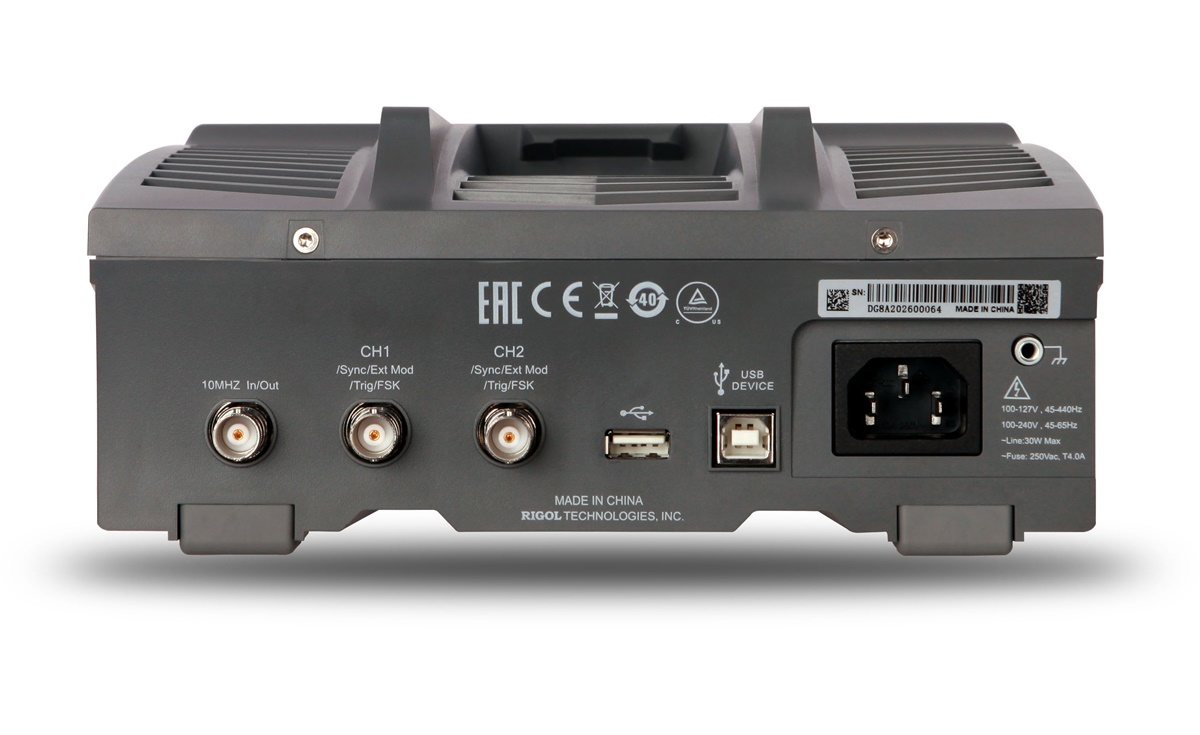

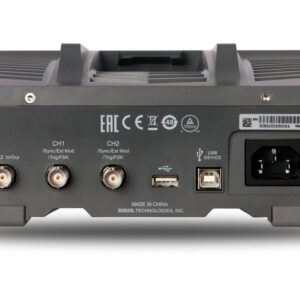

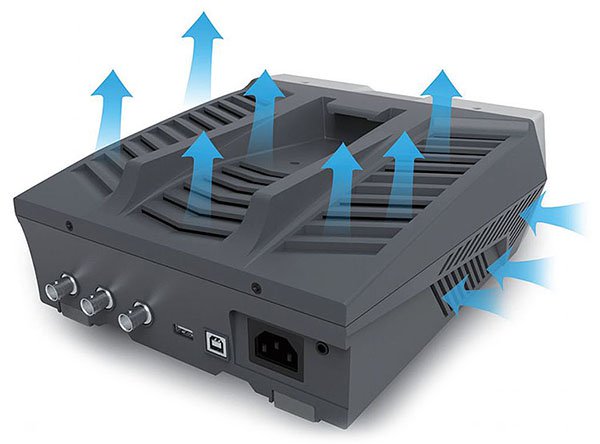

Channels 2
Maximum Frequency 25 MHz
Sample Rate 125 MSa/s
Basic Waveforms Sine, square, ramp, pulse, noise, DC, dual-tone
Advanced Waveforms PRBS, RS232, sequence
Built-In Arbitrary Waveforms 160-off, including: Sinc, exponential rise, exponential fall, ECG, Gauss, HaverSine, Lorentz, etc
Frequency Characteristics
Sine 1 μHz to 25 MHz
Square 1 μHz to 10 MHz
Ramp 1 μHz to 500 kHz
Pulse 1 μHz to 10 MHz
Harmonic 1 μHz to 10 MHz
PRBS 2 kbps to 20 Mbps
Dual-tone 1 μHz to 20 MHz
RS232 baud rate range: 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400
Sequence 2 kSa/s to 30MSa/s
Noise (-3dB) 100 MHz bandwidth
Arbitrary Waveform 1 μHz to 10 MHz
Resolution 1 μHz
Accuracy ±(1ppm of the set value + 10pHz), 18°C to 28°C
General Specifications
Power Supply 100 V to 127 V (45 Hz to 440 Hz) / 100 V to 240 V (45 Hz to 65 Hz)
Power Consumption <30W
Display 4.3″ TFT LCD touch-screen, 480 × 272

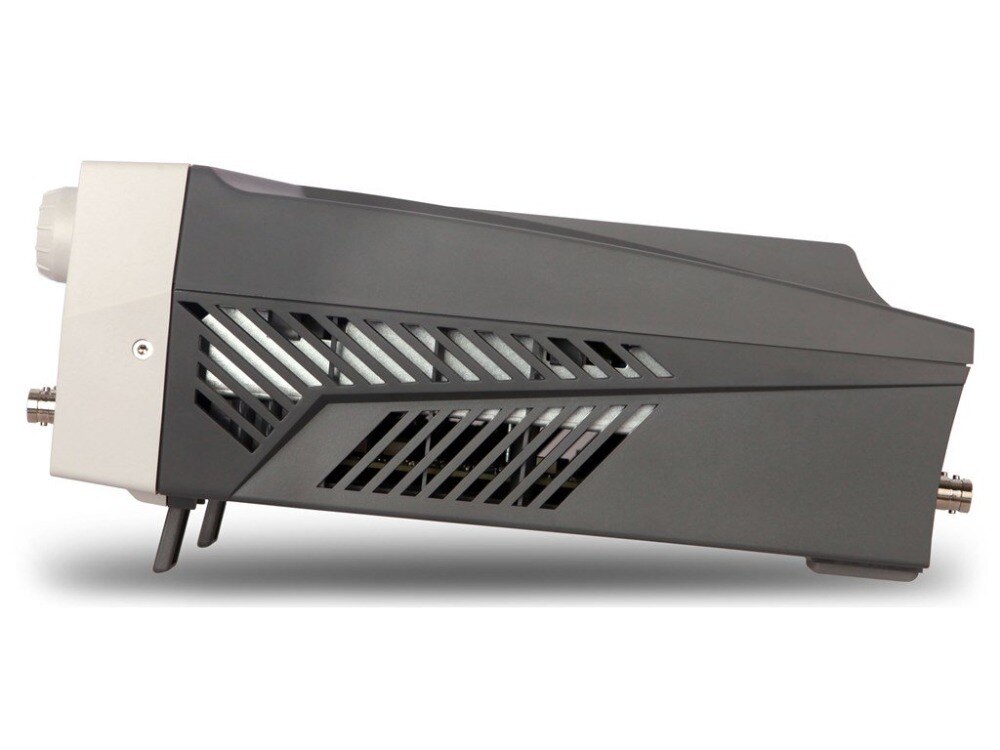

Dimensions 238 × 97 × 266.6mm
Weight 3000 g
Dimensions 23 × 10 × 27 cm
