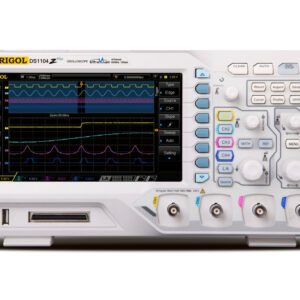

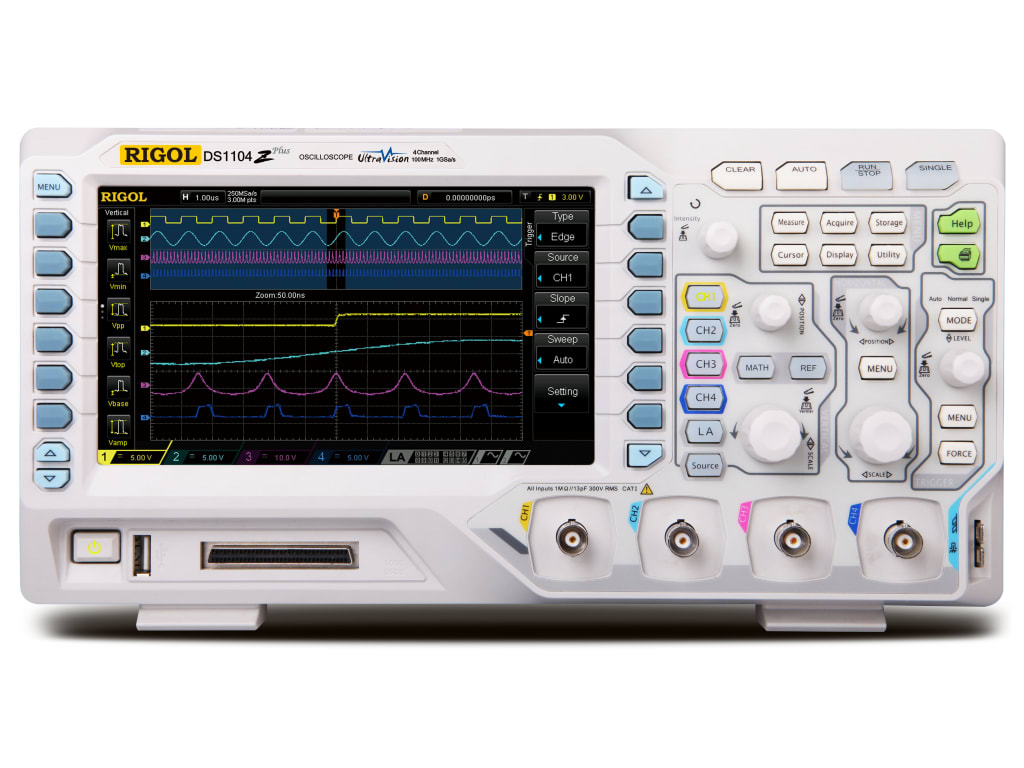

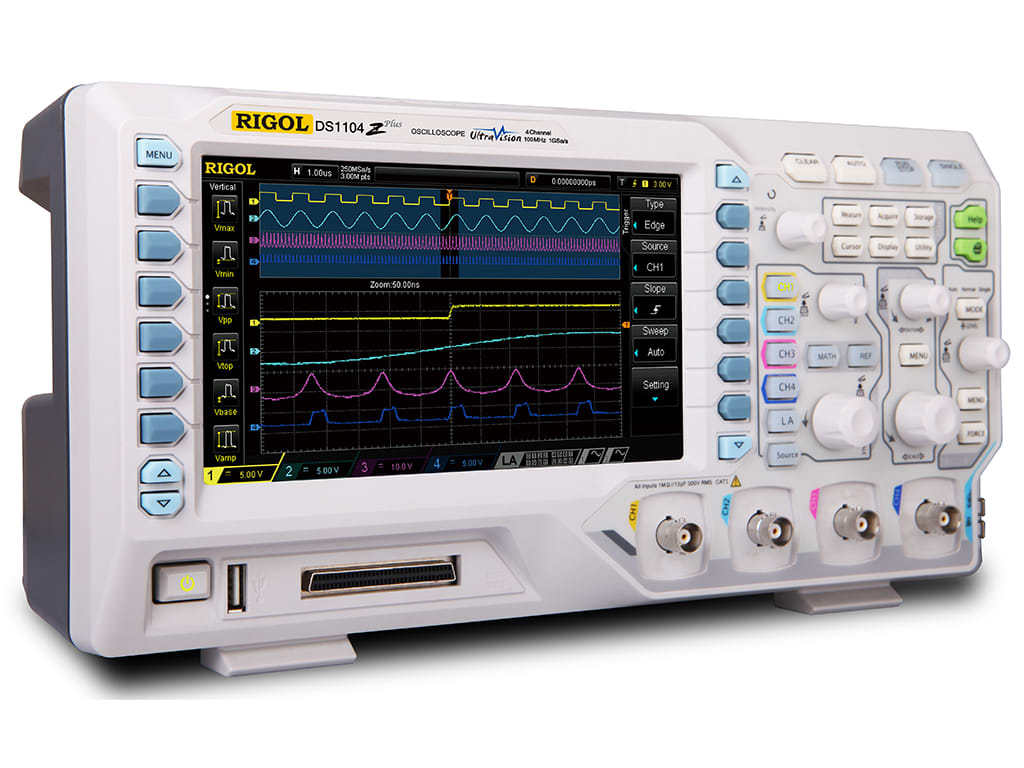

100MHz Bandwidth, 4 channels
1G Sa/s Real-time Sample Rate
12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
Includes FREE Software bundle [BND-MSO/DS1000Z] built into the unit
Innovative “UltraVision” technology
Up to 30,000wfms/s Waveform Capture Rate
Built in 2 channels 25MHz waveform Generator (DS1000Z-S)
7 Inch WVGA (800×480), multiple intensity levels waveform display
Model DS1054Z DS1074Z Plus

DS1074Z-S Plus

DS1104Z Plus

DS1104Z-S Plus

Bandwidth 50MHz 70MHz 100MHz
Channels 4
Maximum Sample Rate 1GSa/s (1Ch), 500MSa/s (2Ch), 250MSa/s (3 or 4Ch)
Maximum Memory Depth 12Mpts (24Mpts Optional)
Maximum Waveform Capture Rate 30,000wfms/s
Time-Base Accuracy ≤±25ppm
Time-Base Drift ≤±5ppm/year
Time-Base Scale 5ns/div to 50s/div
Input Impedance 1MΩ ± 2% // 13pF ± 3pF
Vertical Scale 1mV/div to 10V/div
DC Gain Accuracy ±2% Full Scale (Channel 1), ±3% Full Scale (Channels 2, 3 & 4)
Bandwidth Limit 20MHz
Real Time Waveform Record &

Replay Function (Optional)

Up to 60,000 Frames
Standard Trigger Functions Edge, Pulse Width, Slope, Video, Pattern, Duration
Optional Trigger Functions RS232, I2C, SPI, Runt, Windows, Nth Edge, Delay, Time Out, Setup/Hold
Standard Bus Decoding Parallel Bus
Optional Bus Decoding RS232, I2C, SPI
Math Functions A+B, A-B, AxB, A/B, FFT, AND, OR, NOT, XOR, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs
Auto Measurements Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Single Period Vavg, Vrms, Single Period Vrms,

Overshoot, Preshoot, Area, Period Area, Freq, Period, Rise Time, Fall Time, Width, -Width, Duty, -Duty,

Delay A→B Rising Edge, Delay A→B Falling Edge, Phase A→B Rising Edge, Phase A→B Falling Edge

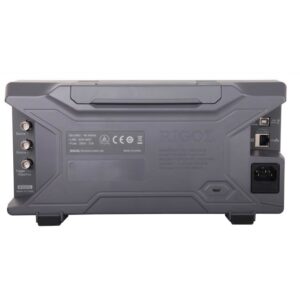

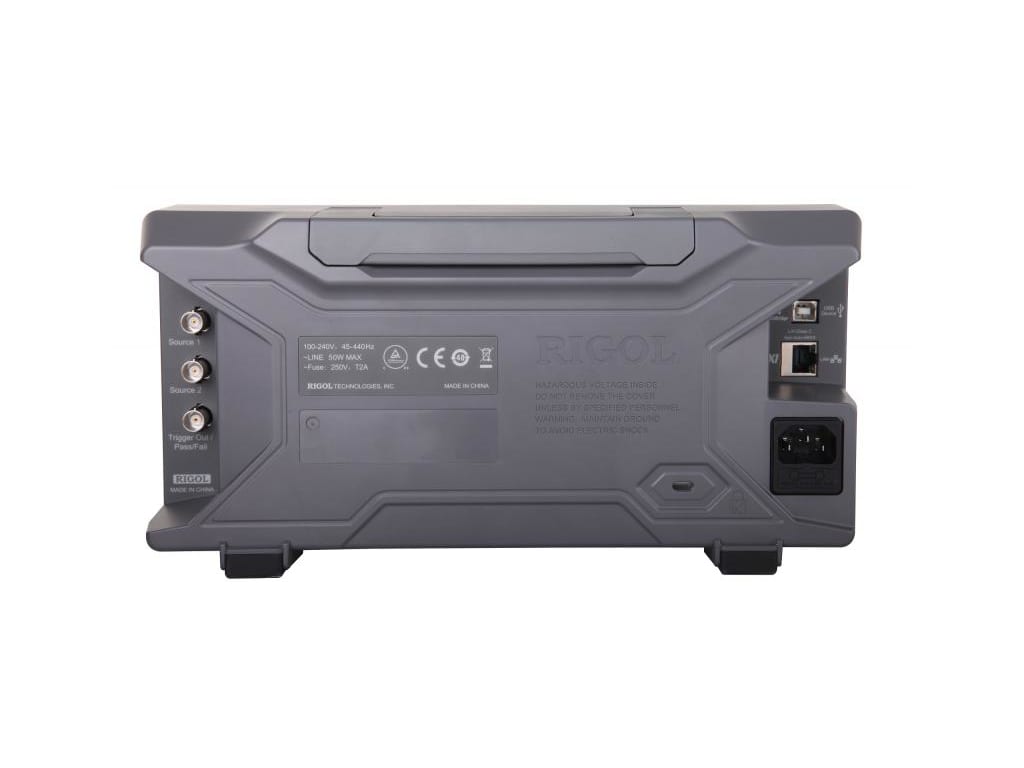

Connectivity USB Host & Device, LAN(LXI), Aux Output (TrigOut, PassFail)

Support USB-GPIB (Optional)

Display 7″ WVGA (800×480) TFT LCD, 64 Intensity Grading Level

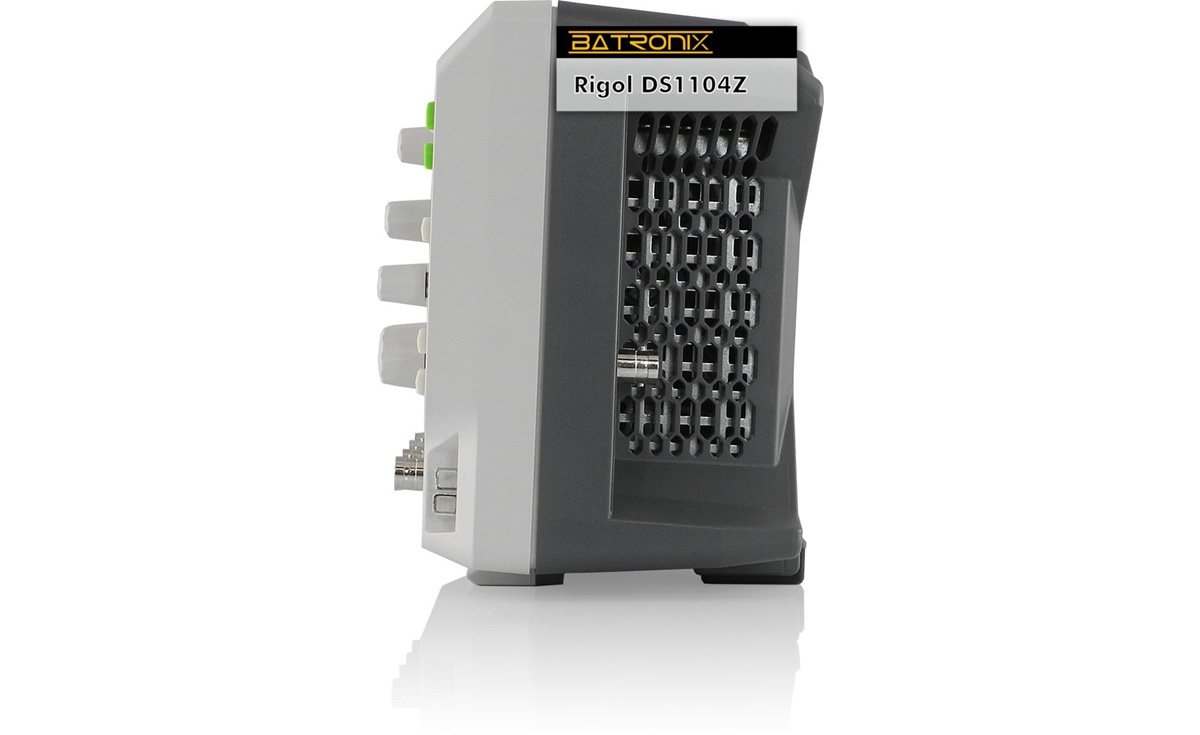

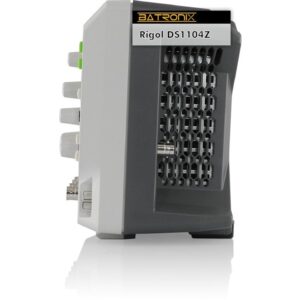

Size (WxHxD) 313.1mm x 160.8mm x 122.4mm
Weight 3.2kg ± 0.2kg (without package)
Standard Probes RP2200 150MHz BW Passive Probe: 4 sets
Built-In 2 Channel Waveform Generator Not Available ‘-S’ Models Only

2 Channels

200MSa/s Sample Rate

14bits Vertical Resolution

25MHz Maximum Output Frequency

20mVpp – 5Vpp Amplitude Range (High Z)

16kpts Waveform Length

Standard Waveforms – Sine, Square, Ramp, Pulse, Noise, DC

Arbitrary Waveforms – Sinc, ExpRise, ExpFall, ECG, Gauss, Lorentz, Haversine, User Defined

Modulation – AM & FM

MSO Ready Not Available Yes

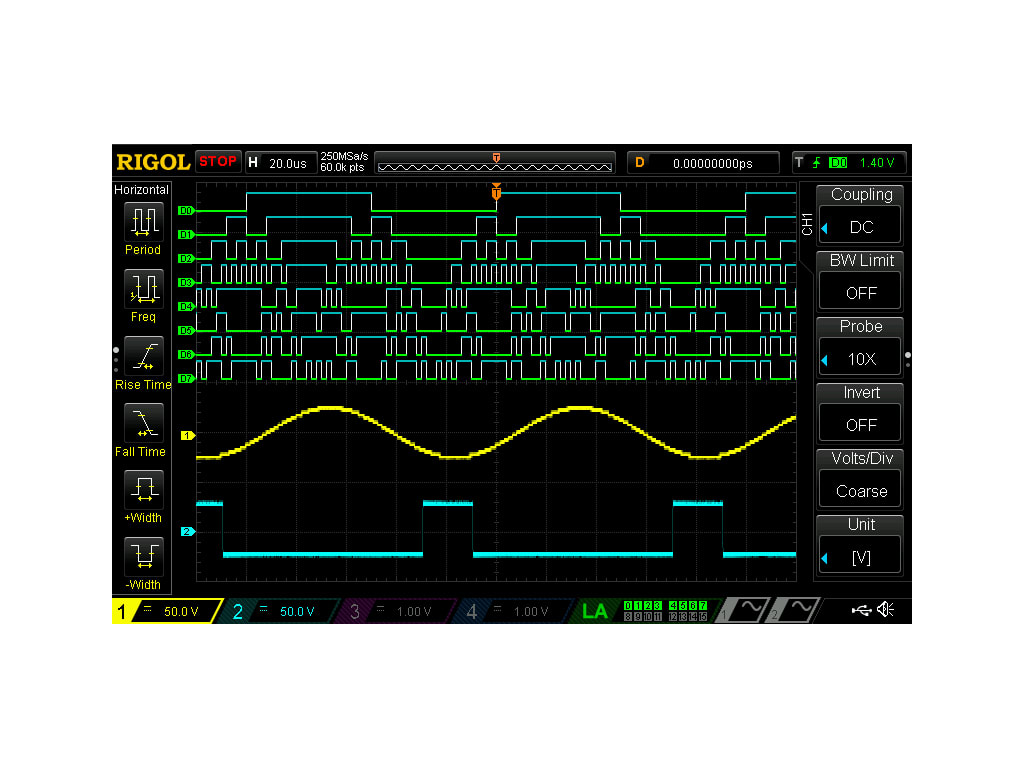

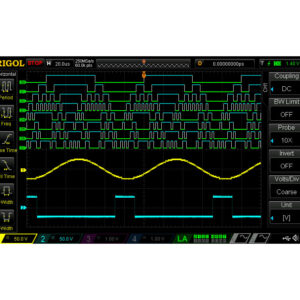

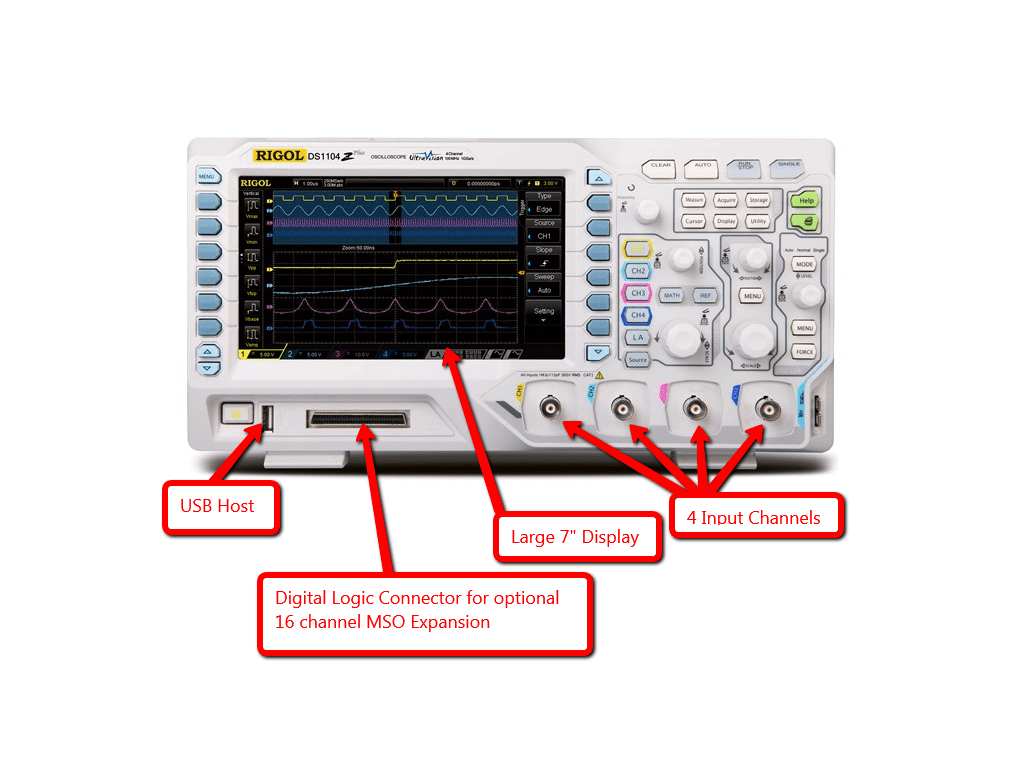

Add 16 digital channels to your Rigol DS1000Z Plus oscilloscope simply by purchasing the Rigol MSO1000Z Upgrade Kit.

Please note – The number of available analogue channels is reduced by 1 for every block of 8 digital channels in use.

For example – If 9 to 16 digital channels are in use, the number of available analogue channels is 2

Weight 4000 g
Dimensions 30 × 30 × 10 cm
