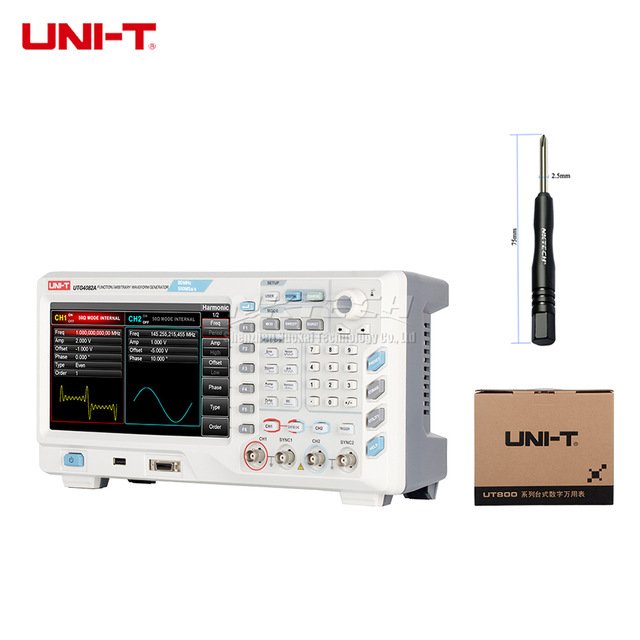

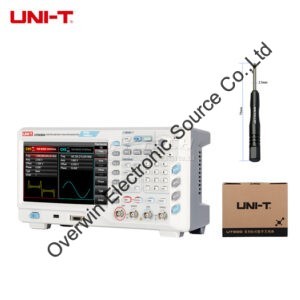

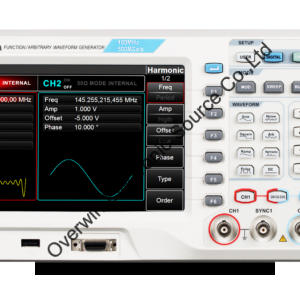

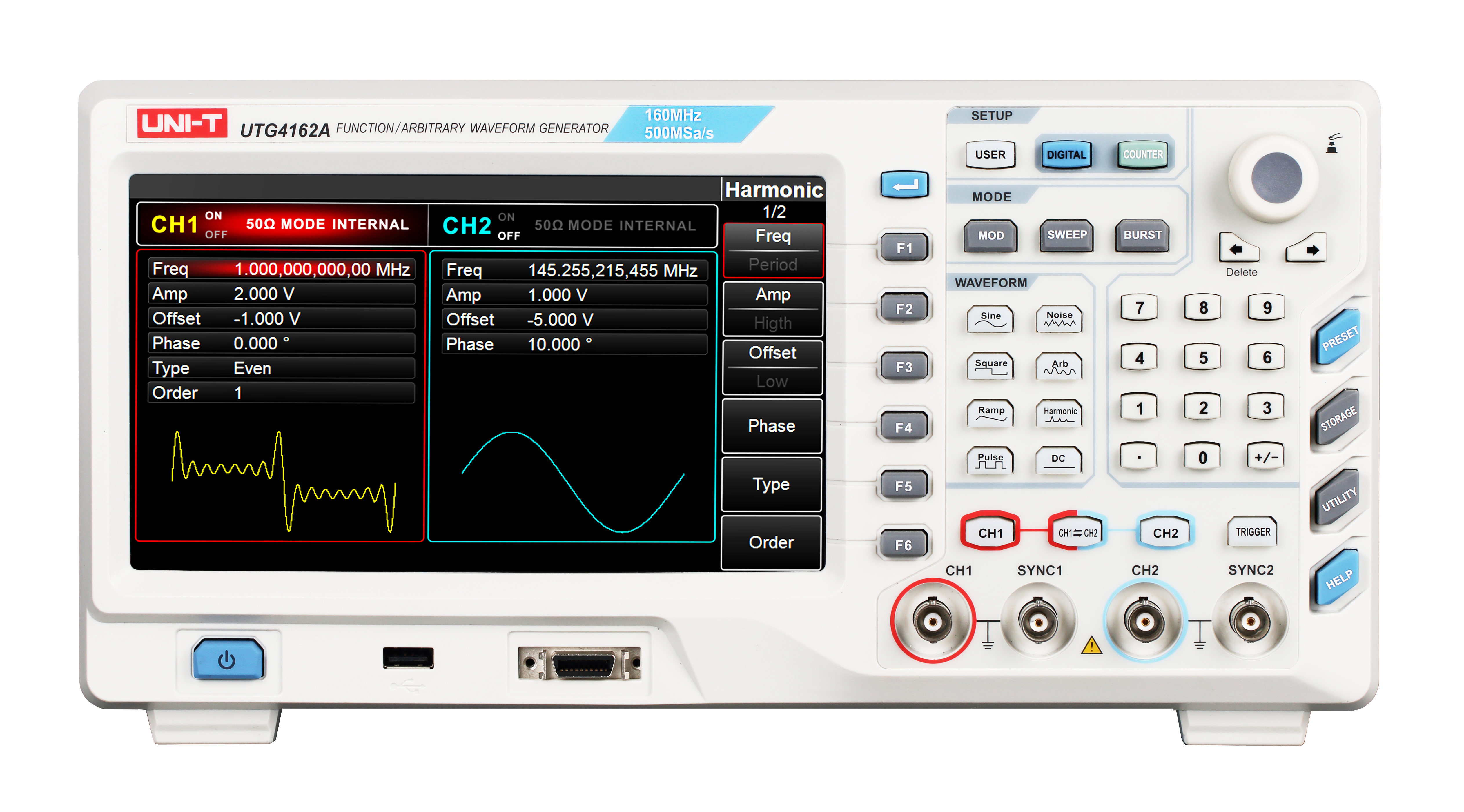

UTG4082A Function/Arbitrary Waveform Generator

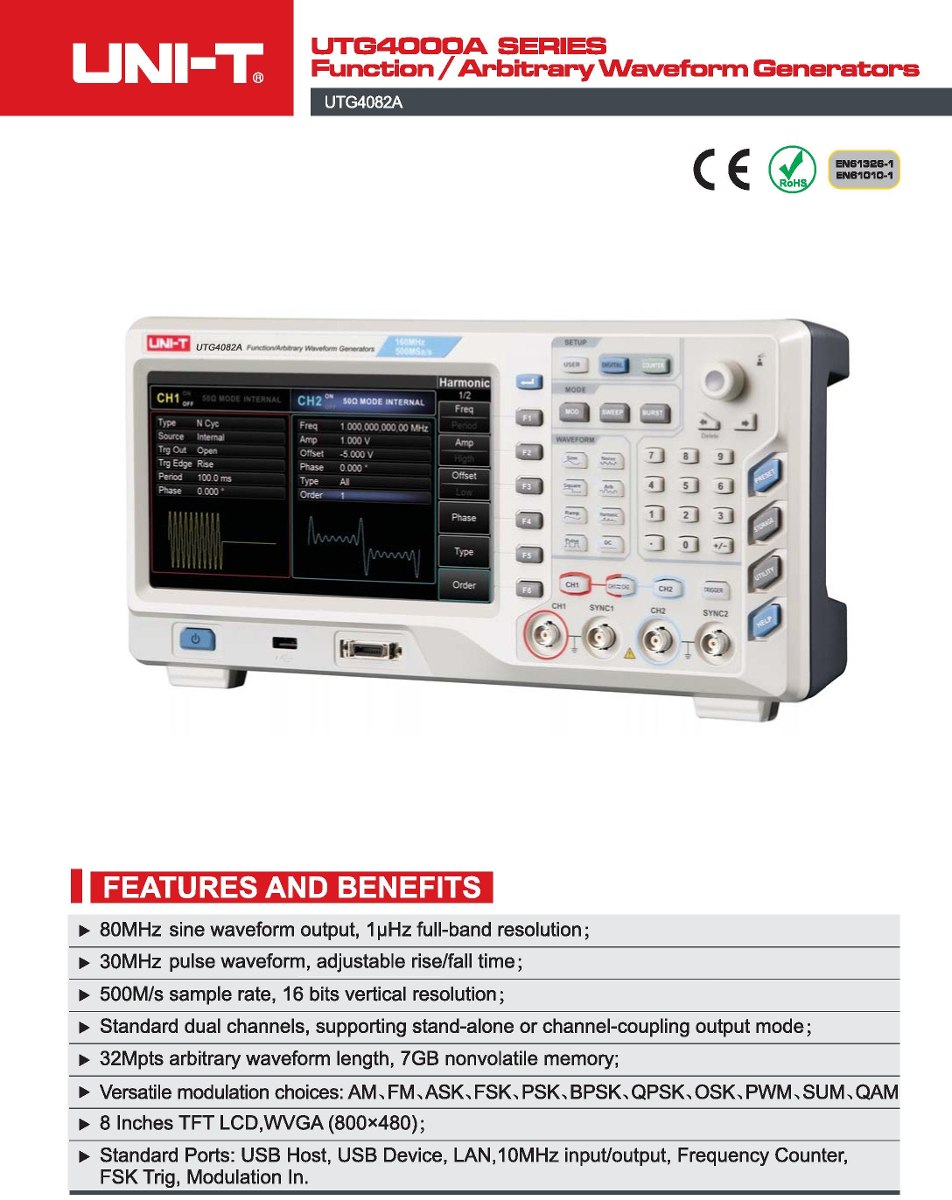

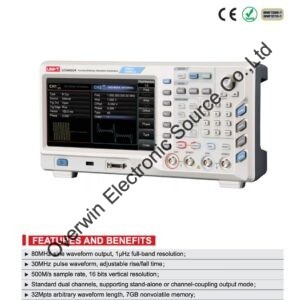

1. 500MSa/s sampling rate and 16-bit vertical resolution
2. 32Mpts arbitrary/7GB nonvolatile waveform storage
3. Modulations available: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
4. 80MHz/120MHz/160MHz sine wave output
5. 30MHz/40MHz/50MHz pulse waveform
6. Adjustable rise/fall time
7. Two equivalent-performance channels
UTG4000A series is a multi-functional signal generator combines with function generator, arbitrary waveform generator, pulse generator, harmonic generator, analog/digital modulator, frequency counter and other functions; It has equal performance dual-channel design, making sample rate up to 500MS/s, maximum arbitrary wave length up to 32Mpts. It has 7GB nonvolatile waveform storage, domestically first optional digital signal generator output module, 8 inches wide screen LCD displays, humanized interface design and reasonable function keyboard layout, which give users a more personalized experience.
Applications:
Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems; semiconductor component testing etc.

Specifications

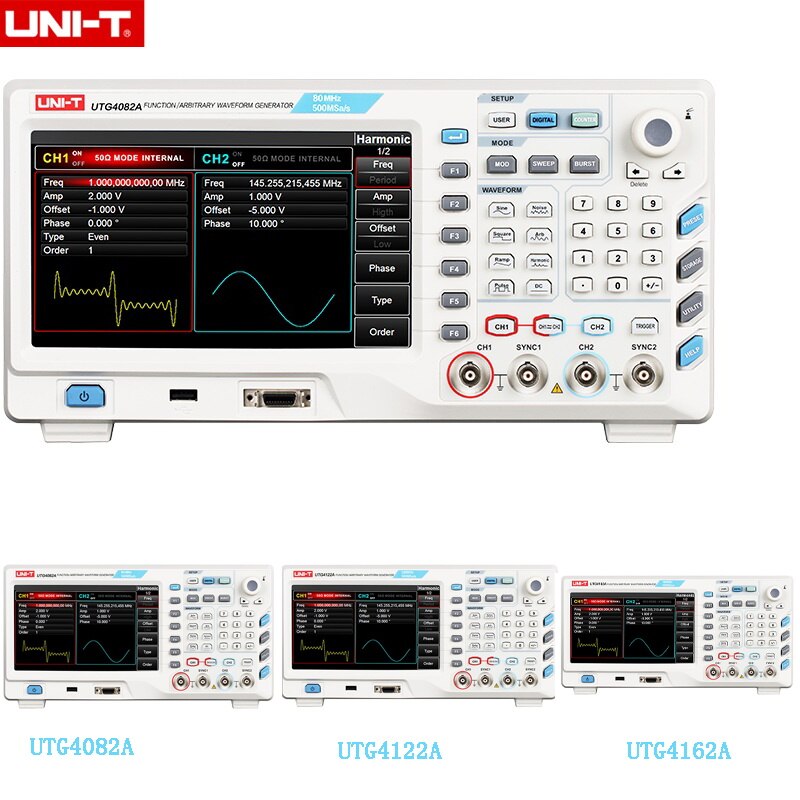

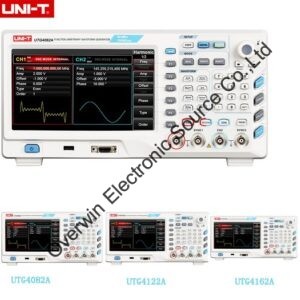

Model UTG4082A UTG4122A UTG4162A
Bandwidth 80MHz 120MHz 160MHz
Channels 2
Sampling rate 500MS/s
Waveforms Sine, square, ramp, harmonic, pulse, noise, DC voltage, arbitrary
Working modes Output on/off, continuous, modulation, sweep, burst
Modulations AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
Frequency Characteristics
Sine 1μHz~80MHz 1μHz~120MHz 1μHz~160MHz
Square/Pulse 1μHz~30MHz 1μHz~40MHz 1μHz~50MHz
Slope 1μHz~2MHz 1μHz~3MHz 1μHz~4MHz
Harmonic 1μHz~40MHz 1μHz~60MHz 1μHz~80MHz
Noise (-3dB) 80MHz bandwidth 120MHz bandwidth 160MHz bandwidth
Resolution 1μHz
Arbitrary Waveform
Frequency range 1μHz~20MHz 1μHz~30MHz 1μHz~40MHz
Length 8~32Mpts
Vertical resolution 16 bits
Min rise/fall time (typical: 1Vpp) <7ns <6ns <5ns
General Characteristics
Power 100V~240V ACrms, 50Hz/60Hz
Display 8-inch TFT LCD, WVGA (800 x 480)
Product color White and grey
Product net weight 3.5kg
Product size 336mm x 164mm x 108mm

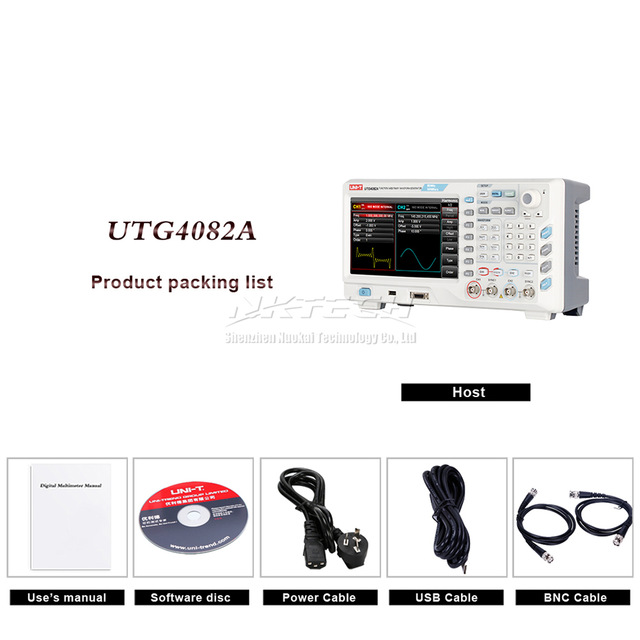

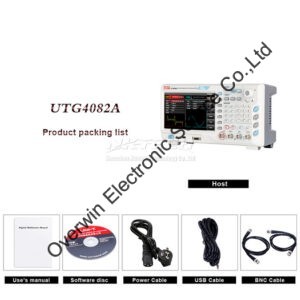

Standard accessories BNC-BNC cable x 2, USB interface cable, PC software CD, power cord
Standard individual packing Carton box
Standard quantity per carton 1pcs
Standard carton measurement 405mm x 225mm x 265mmv
Standard carton gross weight 4.8kg
Weight 4800 g
Dimensions 40.5 × 22.5 × 26.5 cm
