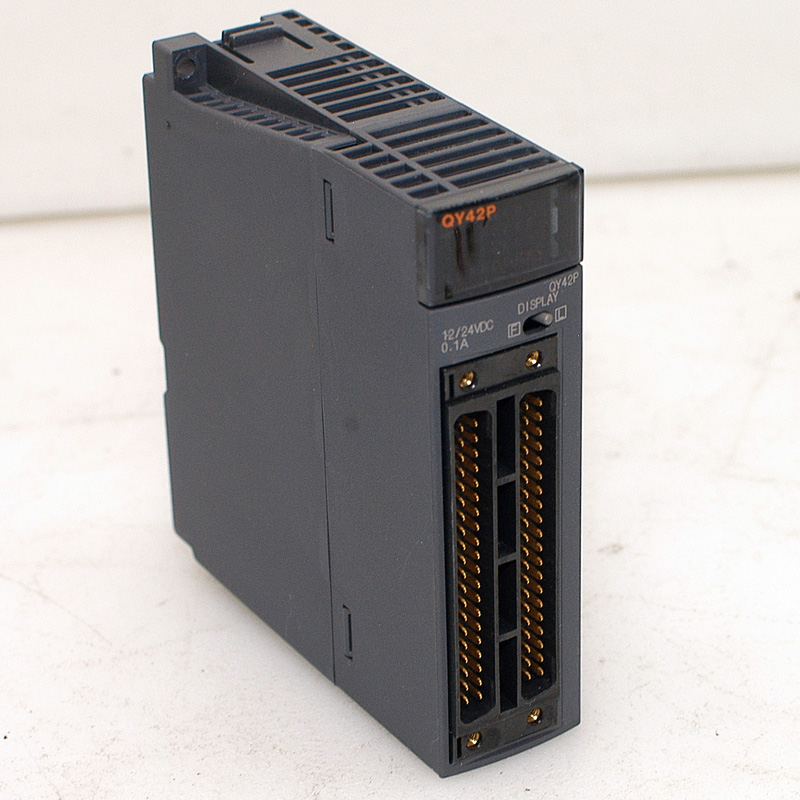

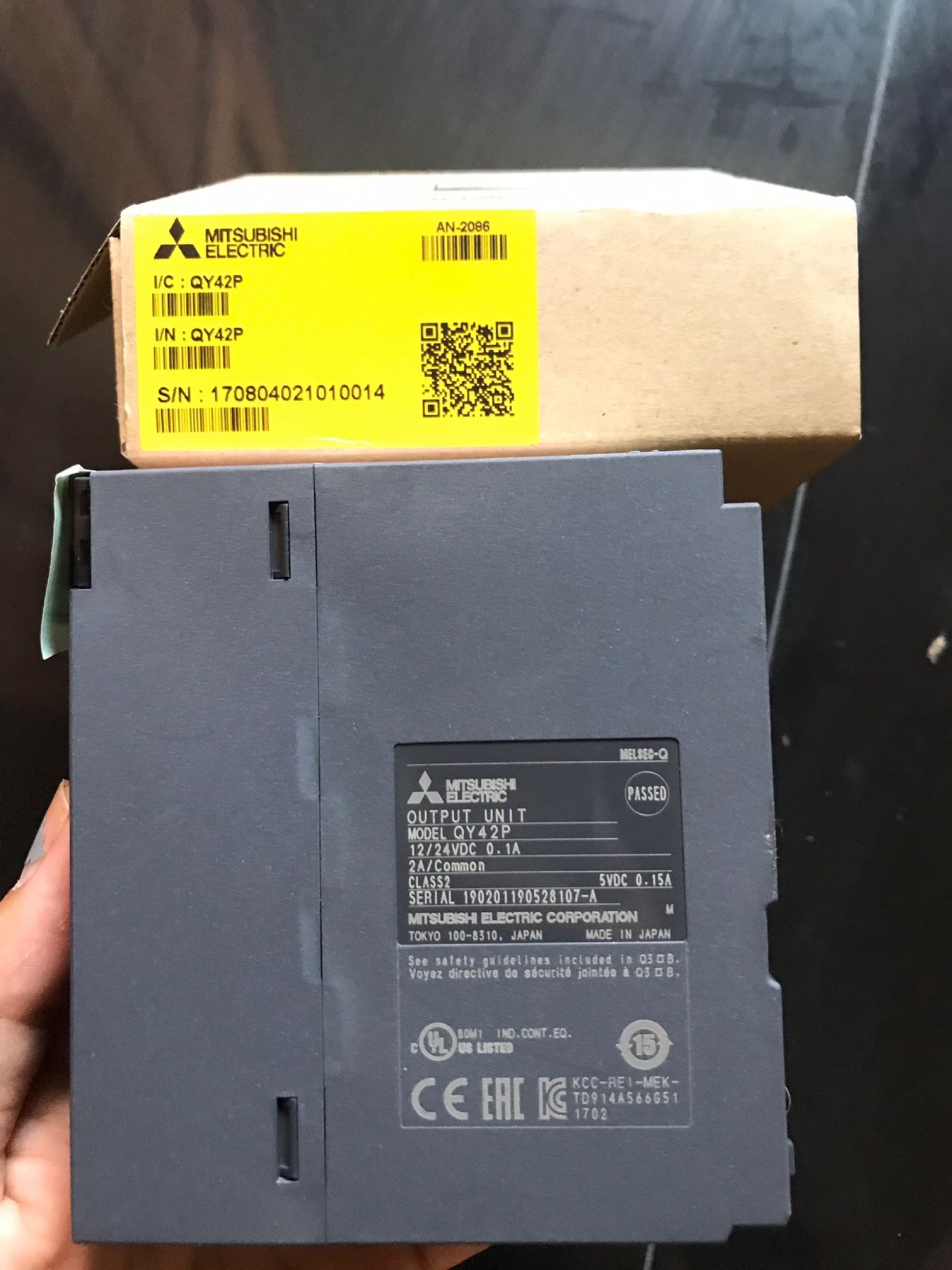

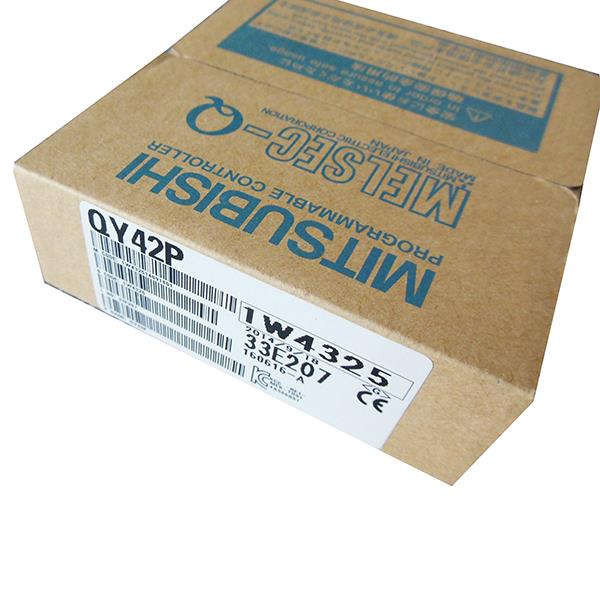

MITSUBISHI QY42P Product information and technical parameters:
Brand: MITSUBISHI
Name: Transistor output module (drain type)
Model: QY42P
Output points: 64 points.
Output voltage and current: 24V ~ 0.2A/1 DC5 point.
2A/1 common end.
OFF leakage current: 0.1mA.
Response time: 1ms.
32 points and 1 common ends.
Leaky type.
40 pin connector.
With heat protection.
With short circuit protection.
With the surge absorber.
Ultra high-speed processing, production time is shortened, better performance.
As applications become larger and more complex, it is necessary to shorten the system operation cycle time.
The operation period can be shortened by the super high basic operation speed 1.9ns.
In addition to achieve in the past with the control of single-chip high-speed control,

Weight 100 g
Dimensions 8 × 5 × 9 cm
